BlogThe surface finish of a hydraulic piston seal is a critical factor that significantly influences its performance, durability, and overall efficiency within a hydraulic system. As a leading supplier of hydraulic piston seals, I understand the importance of meeting the right surface finish requirements to ensure optimal functionality and customer satisfaction.
Understanding Surface Finish
Surface finish refers to the texture of a surface, which is determined by the machining or manufacturing process used to create it. In the context of hydraulic piston seals, the surface finish of the piston rod and the cylinder bore plays a crucial role in the seal's ability to prevent fluid leakage, reduce friction, and withstand the operating conditions of the hydraulic system.
The surface finish is typically measured in terms of roughness average (Ra), which is the arithmetic average of the absolute values of the surface height deviations from the mean line, measured within a specified sampling length. A lower Ra value indicates a smoother surface, while a higher Ra value indicates a rougher surface.
Importance of Surface Finish for Hydraulic Piston Seals
Leakage Prevention
One of the primary functions of a hydraulic piston seal is to prevent fluid leakage between the piston and the cylinder bore. A smooth surface finish on the piston rod and the cylinder bore helps to create a tight seal, reducing the risk of fluid leakage. If the surface is too rough, it can cause the seal to deform or wear unevenly, leading to leaks and potential system failure.
Friction Reduction
Friction between the seal and the piston rod or cylinder bore can cause wear and tear on the seal, reducing its lifespan and performance. A smooth surface finish helps to reduce friction, allowing the seal to move more freely and efficiently within the hydraulic system. This not only extends the life of the seal but also improves the overall efficiency of the system by reducing energy consumption.
Wear Resistance
Hydraulic piston seals are subjected to high pressures, temperatures, and mechanical stresses during operation. A smooth surface finish helps to distribute these forces evenly across the seal, reducing the risk of wear and damage. This is particularly important in applications where the seal is exposed to abrasive particles or contaminants, as a rough surface can trap these particles and accelerate wear.
Seal Lubrication
Proper lubrication is essential for the performance and longevity of hydraulic piston seals. A smooth surface finish helps to retain lubricants, ensuring that the seal remains properly lubricated during operation. This reduces friction and wear, while also preventing the formation of dry spots or areas of high stress that can lead to seal failure.
Surface Finish Requirements for Hydraulic Piston Seals
The ideal surface finish for a hydraulic piston seal depends on several factors, including the type of seal, the operating conditions of the hydraulic system, and the specific application requirements. In general, a smoother surface finish is preferred for most hydraulic applications, as it provides better sealing performance, reduced friction, and improved wear resistance.
Piston Rod Surface Finish
For piston rods, a surface finish of Ra 0.2 to 0.8 micrometers is typically recommended. This range provides a good balance between sealing performance and friction reduction. A smoother surface finish (Ra < 0.2 micrometers) may be required for applications where low friction and high precision are critical, such as in aerospace or medical equipment. On the other hand, a rougher surface finish (Ra > 0.8 micrometers) may be acceptable for applications where the seal is less sensitive to friction and wear, such as in industrial machinery.
Cylinder Bore Surface Finish
The surface finish of the cylinder bore is also important for the performance of the hydraulic piston seal. A surface finish of Ra 0.4 to 1.6 micrometers is generally recommended for cylinder bores. This range helps to ensure a tight seal between the piston and the cylinder bore, while also allowing for proper lubrication and reduced friction.
Meeting Surface Finish Requirements
As a hydraulic piston seal supplier, we understand the importance of meeting the surface finish requirements of our customers. We work closely with our clients to understand their specific application requirements and recommend the most suitable surface finish for their hydraulic systems.
Precision Manufacturing
We use advanced manufacturing techniques and equipment to ensure that our hydraulic piston seals are produced with the highest level of precision and quality. Our manufacturing processes are designed to achieve the desired surface finish on the piston rod and cylinder bore, ensuring optimal performance and reliability.
Quality Control
We have a rigorous quality control system in place to ensure that all of our hydraulic piston seals meet or exceed the required surface finish specifications. Our quality control team uses state-of-the-art measuring equipment to inspect the surface finish of each seal before it is shipped to our customers.
Custom Solutions
We offer custom solutions to meet the unique surface finish requirements of our customers. Whether you need a specific Ra value or a custom surface treatment, our team of experts can work with you to develop a solution that meets your needs.
Recommended Products
In addition to our commitment to meeting surface finish requirements, we also offer a wide range of high-quality hydraulic piston seals to meet the diverse needs of our customers. Some of our recommended products include:
- OEM CPU Seal: Our OEM CPU seals are designed to provide superior sealing performance and reliability in a variety of hydraulic applications. These seals are made from high-quality materials and are precision-engineered to meet the strictest industry standards.
- Anti-ozone PU Seal: Our anti-ozone PU seals are specifically designed to resist the effects of ozone and other environmental factors. These seals are ideal for applications where the seal is exposed to harsh conditions, such as outdoor or industrial environments.

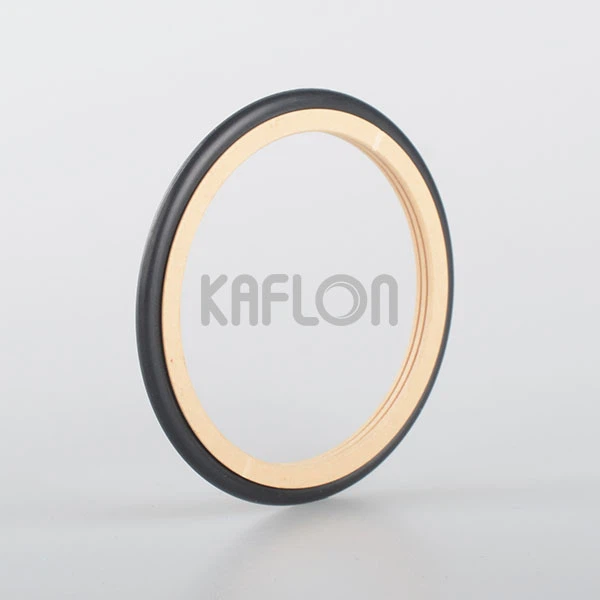

- Rotating Glyd Ring: Our rotating Glyd rings are designed to provide reliable sealing performance in rotating applications. These rings are made from high-performance materials and are engineered to withstand high pressures and speeds.
Contact Us for Procurement
If you are in the market for high-quality hydraulic piston seals that meet your surface finish requirements, we invite you to contact us for procurement. Our team of experts is ready to assist you in selecting the right seal for your application and providing you with the best possible service and support.
References
- Hydraulic Seals Handbook, edited by Klaus P. Jost
- Fundamentals of Fluid Power, by David Crolla
- Sealing Technology Handbook, by John P. Carruthers
