BlogA hydraulic rod seal is a critical component in hydraulic systems, designed to prevent the leakage of hydraulic fluid and maintain the system's efficiency. However, when a hydraulic rod seal begins to leak, it can lead to a series of consequences that range from minor inconveniences to severe system failures. As a hydraulic rod seal supplier, I've witnessed firsthand the impact of seal leakage on various hydraulic applications. In this blog, I'll delve into the consequences of a leaking hydraulic rod seal and discuss how to address these issues.
1. Loss of Hydraulic Fluid
One of the most immediate consequences of a leaking hydraulic rod seal is the loss of hydraulic fluid. Hydraulic fluid is the lifeblood of a hydraulic system, transmitting power and lubricating moving parts. When a seal fails and fluid leaks out, the system's fluid level drops. This can lead to a decrease in hydraulic pressure, which in turn affects the performance of the hydraulic cylinders and other components.
For example, in a construction equipment hydraulic system, a leaking rod seal in a boom cylinder can cause the boom to move sluggishly or not at all. The loss of fluid also means that the system has to work harder to maintain the required pressure, leading to increased energy consumption. Over time, continuous fluid loss can result in the need for frequent refilling of the hydraulic reservoir, adding to the operational costs.
2. Contamination of the Hydraulic System
Leaking hydraulic fluid can also introduce contaminants into the system. When the seal fails, dirt, dust, and other foreign particles can enter the hydraulic system through the leak point. These contaminants can cause abrasion and wear on the internal components of the system, such as the piston, cylinder walls, and valves.
The presence of contaminants can lead to premature failure of these components. For instance, small particles can get trapped between the piston and the cylinder wall, causing scoring and reducing the efficiency of the cylinder. Contaminated hydraulic fluid can also clog filters, reducing the flow of fluid and further impairing the system's performance.
3. Reduced System Efficiency
A leaking hydraulic rod seal can significantly reduce the overall efficiency of the hydraulic system. As mentioned earlier, the loss of fluid and the entry of contaminants can cause the system to work harder to achieve the desired output. This increased workload leads to higher energy consumption and lower productivity.
In industrial applications, such as manufacturing plants, reduced system efficiency can result in slower production rates and increased downtime for maintenance. For example, a hydraulic press with a leaking rod seal may not be able to apply the required force consistently, leading to defective products and wasted materials.
4. Safety Hazards
Leaking hydraulic fluid can pose significant safety hazards in various settings. Hydraulic fluid is often flammable, and a leak in a high - temperature environment can increase the risk of fire. In addition, slippery fluid on the floor can cause slips and falls, endangering the safety of workers.
In mobile equipment, such as forklifts or cranes, a leaking hydraulic rod seal can lead to sudden loss of control. For example, if the seal in the steering cylinder of a forklift fails, the operator may lose the ability to steer the vehicle properly, increasing the risk of accidents.
5. Damage to Other Components
The consequences of a leaking hydraulic rod seal are not limited to the immediate area of the leak. The increased stress on the system due to fluid loss and contamination can cause damage to other components as well. For example, the increased load on the hydraulic pump can lead to premature wear and failure of the pump.
The failure of the pump can then have a cascading effect on the entire hydraulic system, causing it to shut down completely. Replacing a hydraulic pump is often a costly and time - consuming process, further adding to the downtime and repair costs.
Addressing the Issue of Leaking Hydraulic Rod Seals

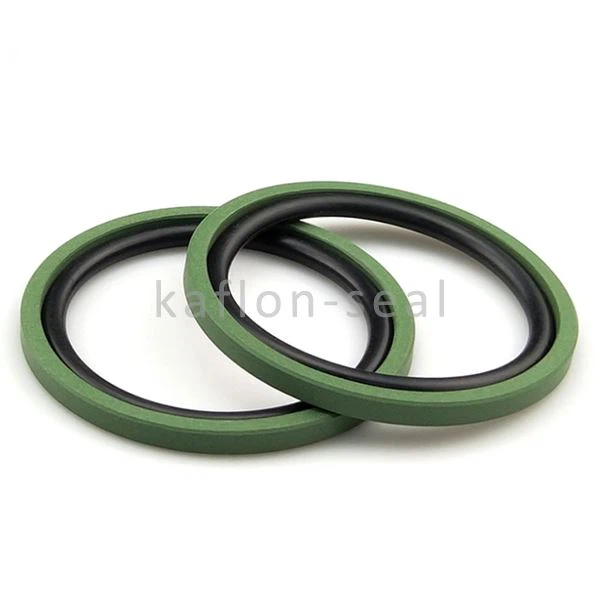

As a hydraulic rod seal supplier, I understand the importance of providing high - quality seals to prevent these consequences. We offer a range of seals, including the Low Stick And Slip Glyd Ring, Rod Sealing Step Seal, and Linear Rod Seal, which are designed to provide reliable sealing performance in various hydraulic applications.
Regular inspection and maintenance of hydraulic systems are also crucial. By checking the condition of the rod seals periodically, potential leaks can be detected early, and the seals can be replaced before they cause significant damage. Proper installation of the seals is also essential to ensure their long - term performance.
Conclusion
A leaking hydraulic rod seal can have far - reaching consequences, from loss of hydraulic fluid and contamination to reduced system efficiency, safety hazards, and damage to other components. As a hydraulic rod seal supplier, we are committed to providing our customers with high - quality seals and expert advice to prevent these issues. If you are experiencing problems with your hydraulic rod seals or are looking for reliable sealing solutions, we encourage you to contact us for a consultation. Our team of experts can help you select the right seal for your application and ensure that your hydraulic system operates at its best.
References
- Hydraulic Seals Handbook, various industry publications
- Technical reports on hydraulic system failures and maintenance from leading hydraulic equipment manufacturers
