V02 TFM Cantilever Spring Seal

Name: Customized V02 TFM Cantilever Spring Seal Manufacturers, Suppliers, Factory - KAFLON
Brand: Kaflon
SKU: 147010128

TFM is a modified material of PTFE with all advantages of PTFE and many other more outstanding performance than PTFE.TFM has the following improved properties : lower deformation at high temperature and pressure, less permeability for chemicals and gases, better recovery under high temperature and pressure, high smooth surface,good chemical resistance,good electrial insulating,very low coefficient of friction,good anti-adhesive properties and excellent at ulta-low temperature application.The spring energized seal can ensure the lasting sealing due to the action of the spring.Good compensation for wear and tear.Application:LNG valve seals,liquid nitrogen equipment seals,CNG equipment seals etc

Send Inquiry

V02 TFM Cantilever Spring Seal

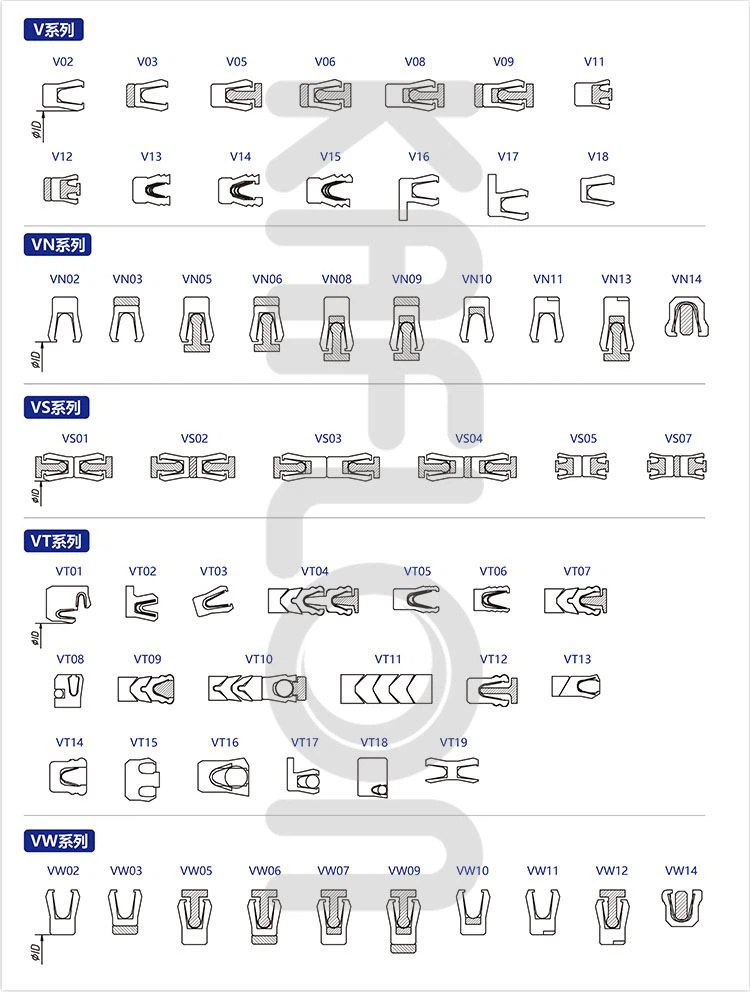

V Spring Series

v02

H V C

Groove size selection table

H & V & C2

H & V & C1

V02 TFM Cantilever Spring Seal has below properties:

·Wide temperature range; -200°C to +260°C.

·Pressure:≤10000psi

·Resistance to embrittlement and aging.

·Substantially lower deformation under load

·High smooth surface

·Good chemical resistance and electrical insulating properties

·Lowest coefficient of friction

·Good anti-adhesive properties

TFM Property table

1 7502--- 2 7502---

1DMH（1600mm） 1_20201126172544

Kalfon is a high-tech enterprise,who has 1,500 square meters of industrial plant and office space . Kaflon is equipped with European imported seal cutting equipment and multiple sets of spring tension and pressure testing machines, sealing ring low-temperature testing equipment, and light welding machines, etc. equipment.

Through a series of product research and development, Kaflon produces ultra-low temperature, high pressure resistance, corrosion resistance and other harsh environment sealing products, breaking the monopoly of foreign suppliers in many fields.

Welcome to contact us for more product information !
