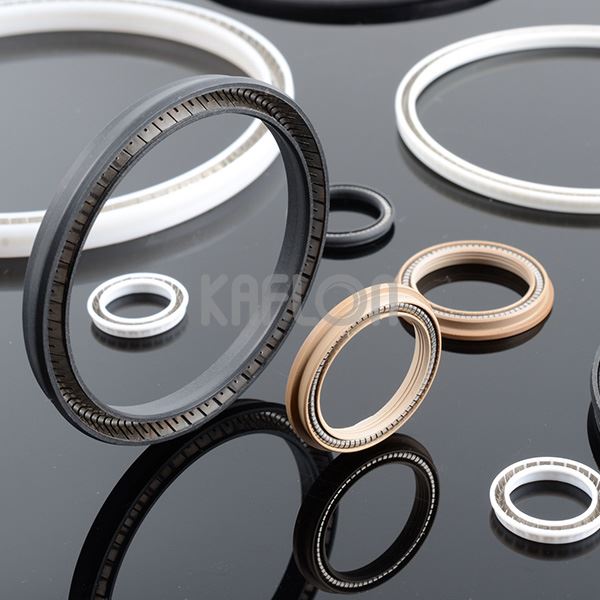

VW09 Face Sealing PTFE Filled With Graphite Energized Seal

VW09 Face Sealing PTFE Filled With Graphite Energized Seal

PTFE filled graphite is based on polytetrafluoroethylene and filled with graphite intensifier. Graphite can improve the wear resistance, thermal conductivity, self-lubricity, electrical conductivity, heat deformation, etc. of PTFE. Suitable for use in environments with high temperature resistance, wear resistance and corrosion resistance
Send Inquiry
Description

VW09 Face sealing PTFE filled with Graphite Energized Seal


V Spring Series

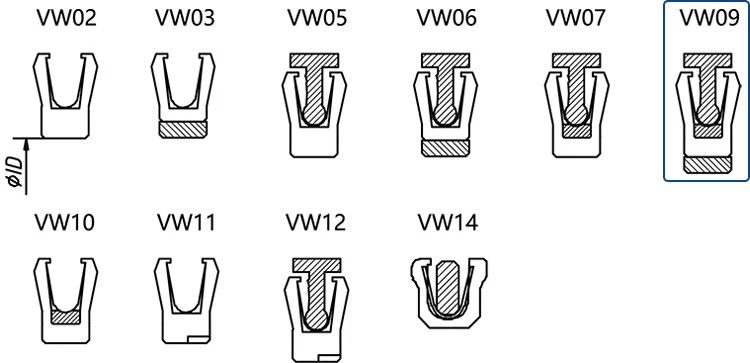

VW09



H V C(vn HW)


Groove Dimension Selection Table

VN & HN & HW & VW

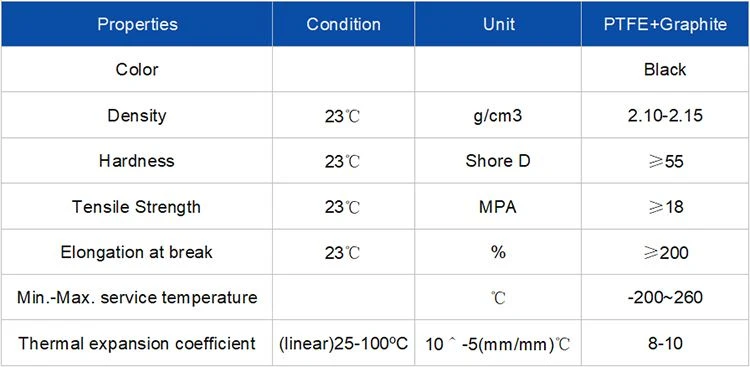

PTFE filled with graphite Property table

PTFE+Graphite

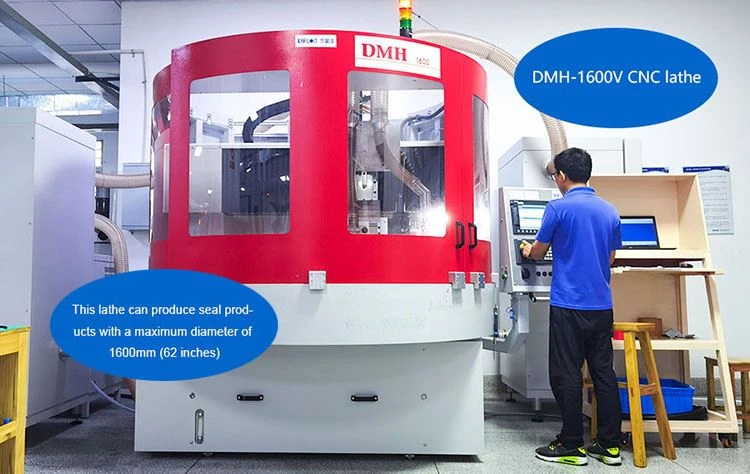

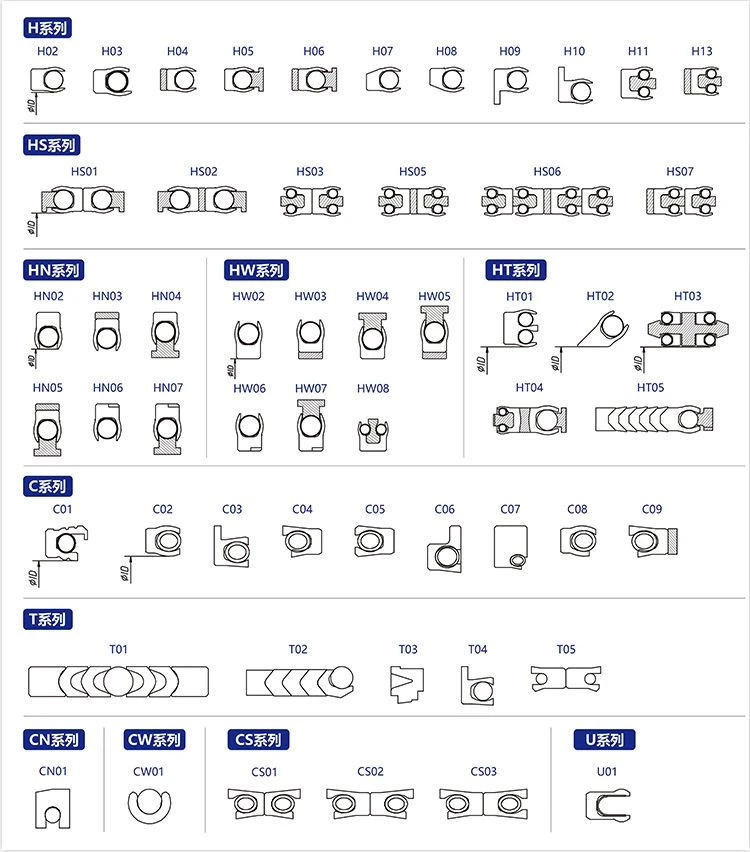

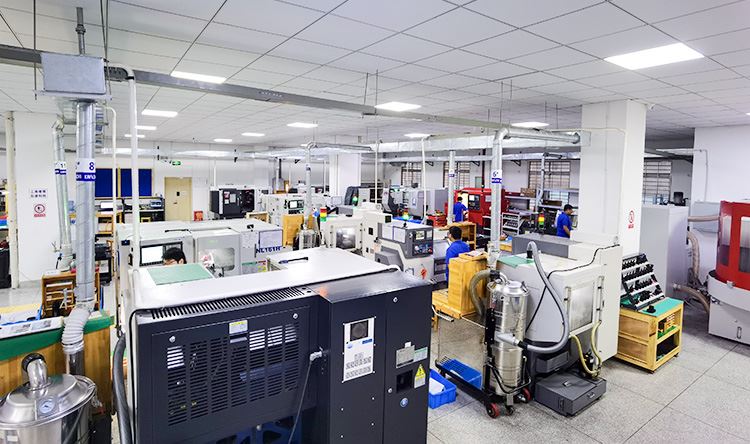

1 7502---2 7502---1DMH(1600mm)1_20201126172544

Kaflon is committed to the research and development and production of ultra-low temperature, high pressure, corrosion resistance and other harsh environmental seal products.

Kalfon Seal 's products covers below application:

petroleum, petrochemical, natural gas, steam system, electric power, metallurgy, shipbuilding, food environmental protection, sewage treatment,  etc.

Any inquires on seals , just contact with us freely!
