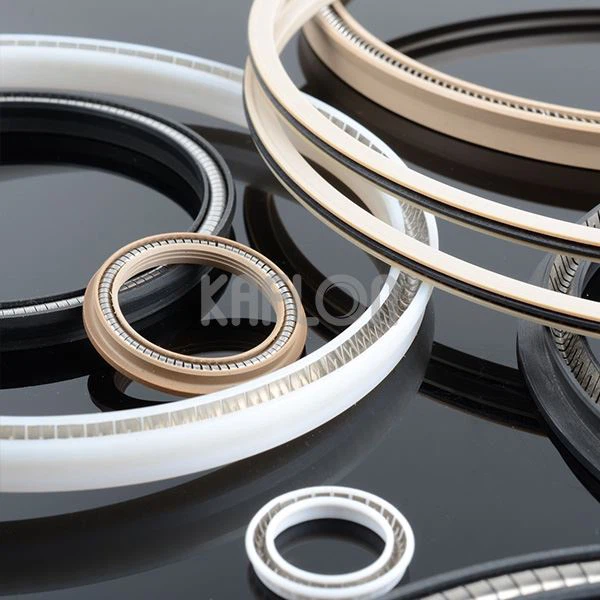

V16 Cantilever Spring PTFE Energized Seal With Flange

V16 Cantilever Spring PTFE Energized Seal With Flange

PTFE is the perfect fluoroplastic for a wide range of applications. But when virgin PTFE is not sufficient, you can choose for PTFE with a filler to obtain better properties. Most applicable fillers are glass, carbon, graphite, bronze and MoS2,etc. Carbon can be used in the form of powder or fibers. Modified PTFE with Carbon fiber improves the compressive strength, making it more resistant to wear, increases the thermal conductivity and makes the material electrically conductive. Carbon is less abrasive than glass.
Send Inquiry
Description

V16 Cantilever Spring PTFE Energized Seal with flange


V Spring Series


V16

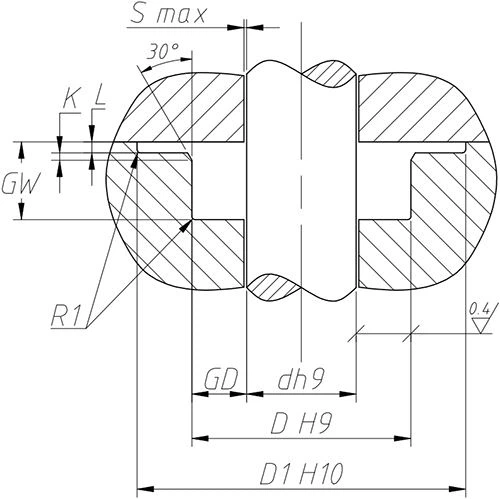

H V C


Groove Dimension Selection Table

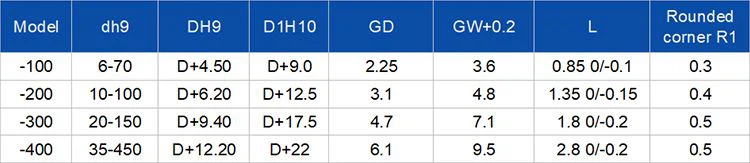

H & V & C 1

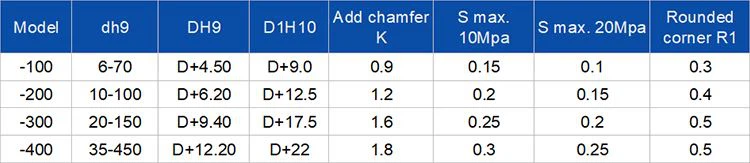

H & V & C 2

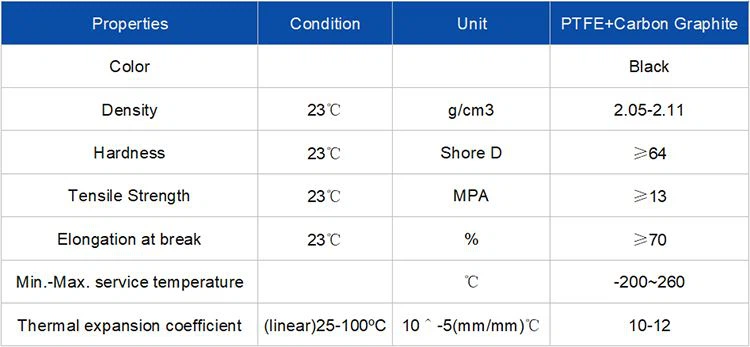

PTFE filled with Carbon fiber Property table

PTFE+Carbon-Graphite

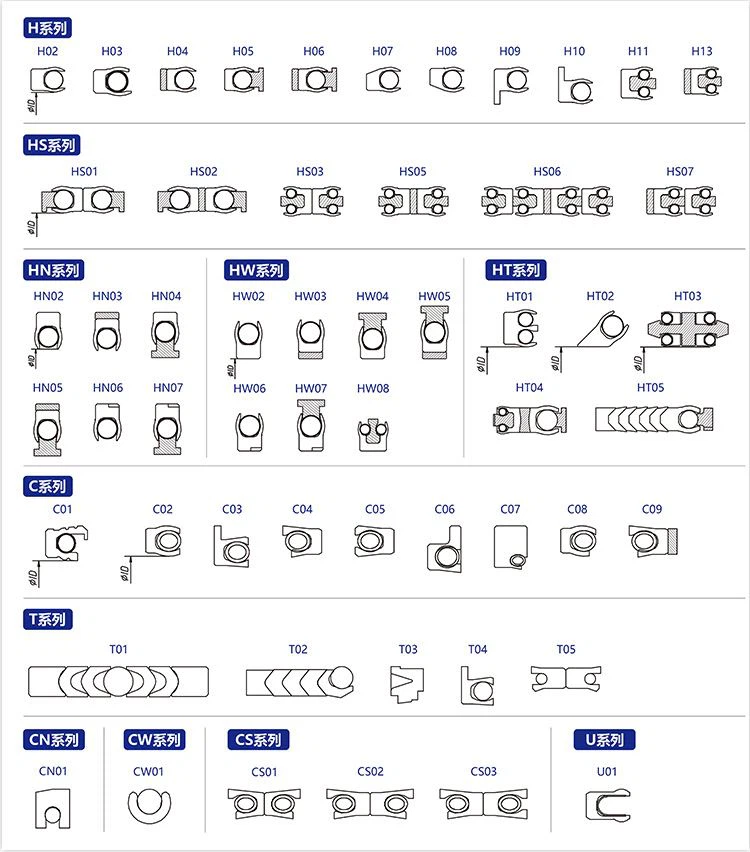

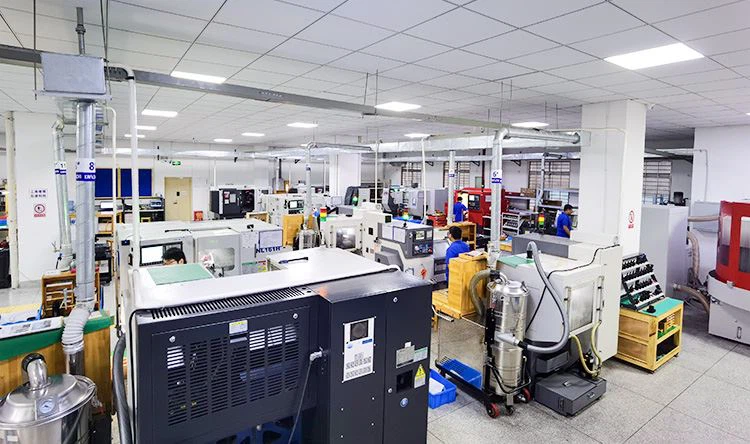

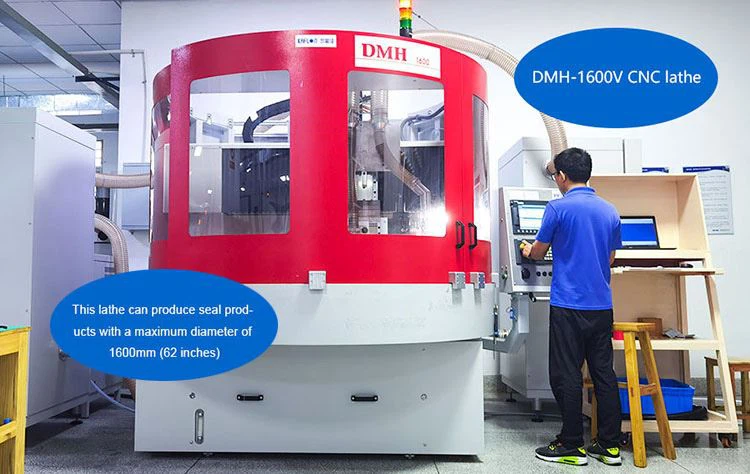

1 7502---2 7502---1DMH(1600mm)1_20201126172544

Kaflon is committed to the research and development and production of ultra-low temperature, high pressure, corrosion resistance and other harsh environmental seal products.

Kalfon Seal 's products covers below application:

petroleum, petrochemical, natural gas, steam system, electric power, metallurgy, shipbuilding, food environmental protection, sewage treatment,  etc.

Any inquires on seals , just contact with us freely!
