H Spring Series

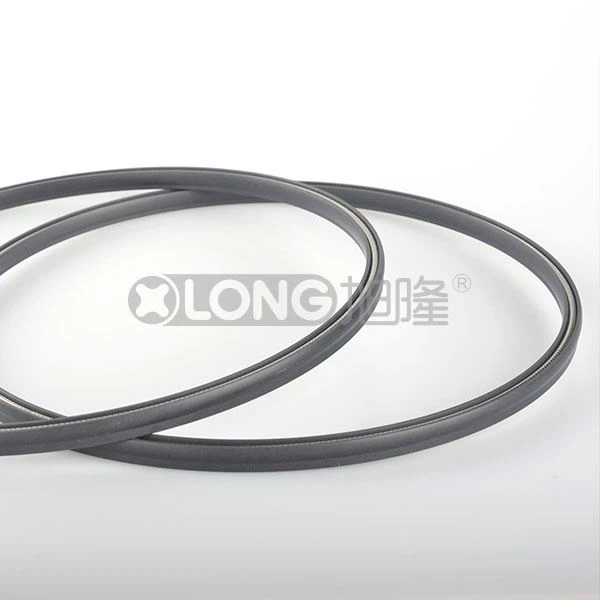

Pumps Spring Energized Seal Teflon Seal
Combining the chemical inertness of polytetrafluoroethylene (PTFE) with the dynamic compensation capability of precision-engineered springs, this seal delivers unparalleled reliability in both static and dynamic (reciprocating or rotating) pump applications. It effectively addresses the common challenges of leakage, material degradation, and performance loss that plague traditional rubber seals, making it an indispensable component for critical industrial processes.
Core Structure & Working Principle
At its heart, the seal features a dual-component design optimized for pump dynamics:
PTFE-Based Seal Body: Fabricated from carbon fiber-reinforced PTFE (CFR-PTFE) or other high-performance PTFE composites, the seal body boasts a friction coefficient as low as 0.1 (ASTM D1894) and exceptional dimensional stability. This material exhibits near-absolute chemical resistance, withstanding acids, alkalis, solvents, hydraulic oils, and food-grade media without swelling or degradation .
Energizing Spring: Embedded within the seal body, the helical spring (typically 316L stainless steel or Elgiloy) provides constant radial preload. When installed in pumps, the spring force-augmented by system fluid pressure-biases the seal lip against the mating surface, creating a tight, adaptive seal .
The working principle leverages dynamic compensation: the spring automatically adjusts for minor eccentricities, thermal expansion, and seal lip wear (up to 0.01mm precision), ensuring consistent contact pressure even during pump start-ups, shutdowns, or intermittent operation . This self-adaptive mechanism eliminates leakage caused by static seal fatigue, a common failure point in conventional pump seals.
Kalfon is a high-tech enterprise,who has 1,500 square meters of industrial plant and office space . Kaflon is equipped with European imported seal cutting equipment and multiple sets of spring tension and pressure testing machines, sealing ring low-temperature testing equipment, and light welding machines, etc. equipment.
