HN02 Face Seal TFM Energzied Seal

Compared to PTFE, TFM has the following improved properties. Substantially lower deformation under load. Denser polymer structure. Less permeable for chemicals and gases. Smoother surface for machining. More transparent. Very good chemical resistance. Good electrical insulating properties. Lowest coefficient of friction. Best anti-adhesive properties.

Send Inquiry

HN02 Face seal TFM Energzied seal

H Spring Series

HN02

H V C

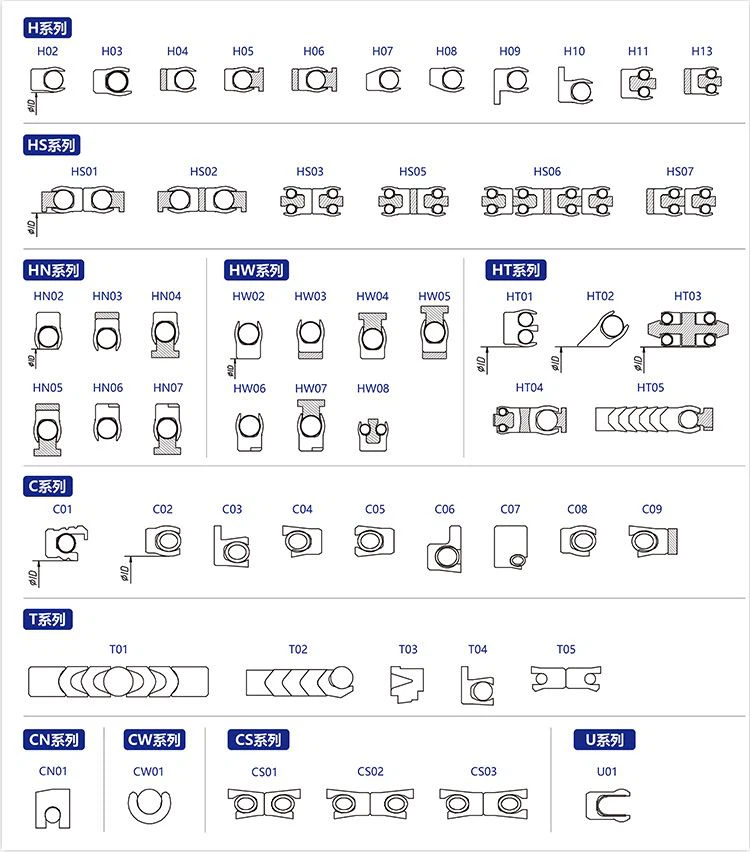

Groove Size selection table

VN & HN & HW & VW

TFM has below properties:

Wide temperature range; -200°C to +260°C.

Resistance to embrittlement and aging.

Substantially lower deformation under load

Denser polymer structure

Good electrical insulating properties

Lowest coefficient of friction

Best anti-adhesive properties

TFM Property table

Properties	Condition	Unit	TFM
Color			Natural
Density	23℃	g/cm3	2.15-2.19
Hardness	23℃	Shore D	≥55-61
Tensile Strength	23℃	MPA	≥25
Elongation at break	23℃	%	≥250
Compressive Modulus	23℃	N/mm2	≥7%
Min.-Max. service temperature		℃	-200~260

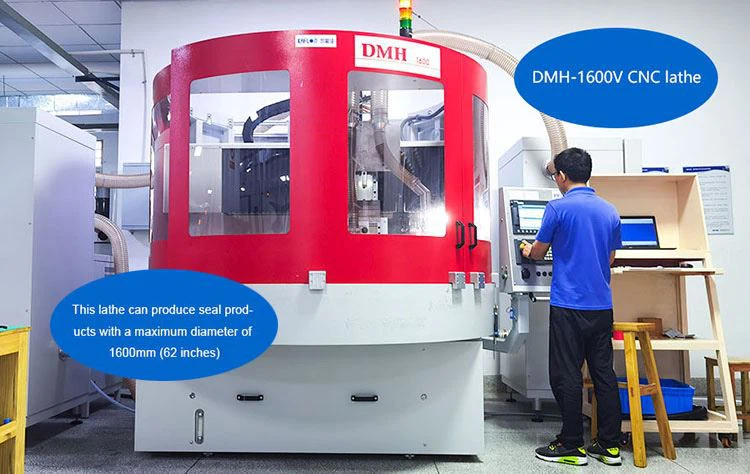

1 7502--- 2 7502--- 1DMH（1600mm） 1_20201126172544

Welcome to contact us for more product information !
