Sealing mechanism

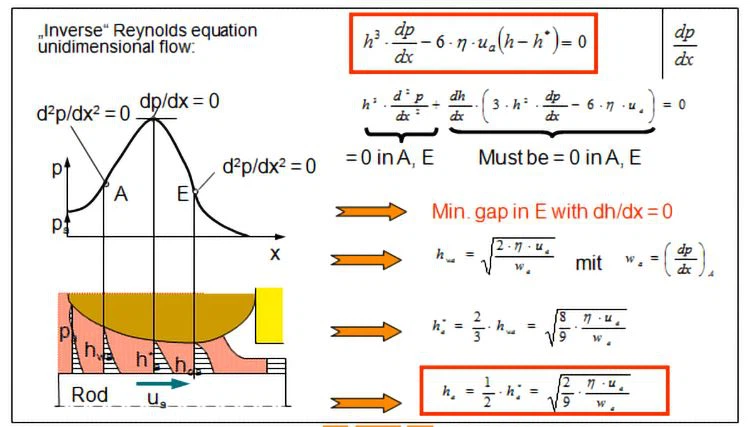

Calculating the sealing gap height

Key:      A/E: Reversal points      dp/dx: Compression      gradient (over the length      of the sealing gap)      pa: Pressure/working pressure      ua: Velocity      h: Sealing gap height      wa: dp/dx max

The rod seal is tight, if the oil film dragged outside is dragged in again.

Lubricating film heights when driving the rod in and out:



Leakage per double stroke (= rod driven in and out, H = stroke length)

Principle and terminology
relating to a rod seal prior to installation
