O rings Gap Extrusion

Failure Mode

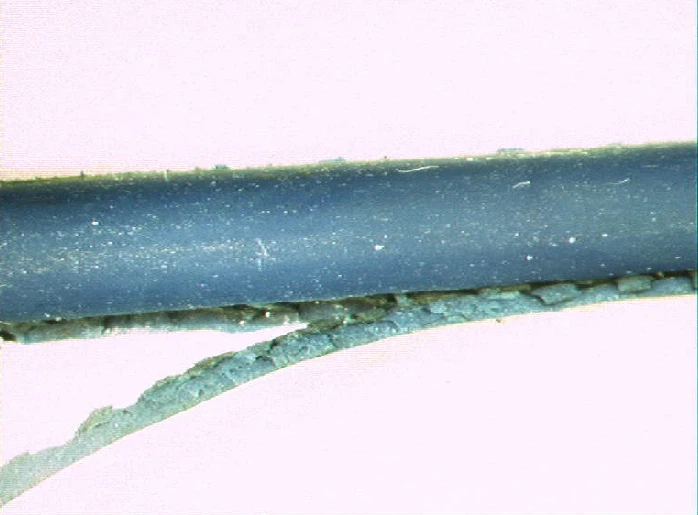

gap extrusion



Failure Cause



gap behind seal too big



Temperature



unsuitable material / cross- section



missing back-up ring



Remedial measures



decrease fit clearance

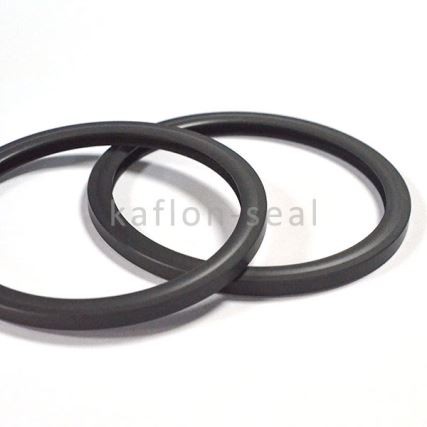

add back-up ring



replace by suitable seal material



improve O-ring cross section
