PTFE Filled With Carbon Graphite Spring Seal

PTFE filled with carbon graphite Spring seal

The sealing ring is installed in the groove, and the spring is compressed to form outward tension, which

promotes the sealing lip to close to the sealing groove. Because the spring permanently provides

elastic force to the sealing lip, it can compensate for the wear of the sealing shell and the eccentricity of

 the mating parts. In addition, the system pressure will assist the spring to accumulate energy. The

greater the pressure, the more fully the sealing lip fits the groove, thereby forming a high-pressure seal.

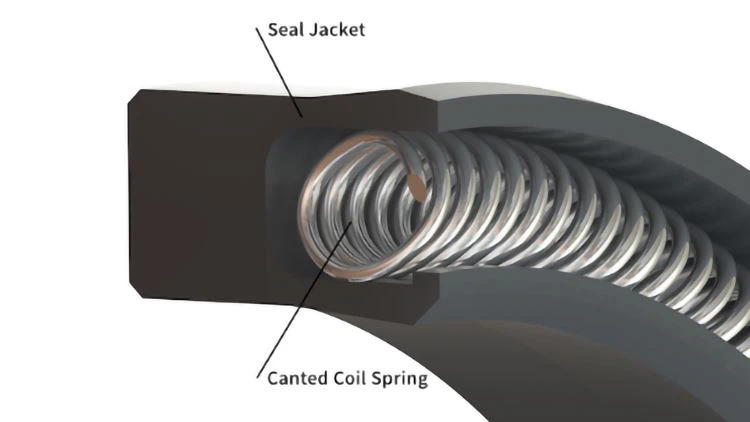

The canted coil spring is composed of round steel wire processed into inclined coils. It has a relatively

constant load in a wide range of displacement, which allows precise control of friction during the

working life of the seal. Its unique design makes it Excessive deformation of the seal is almost

impossible to damage the spring.

Kaflon is technology-oriented and focuses on research and development. It has authorized 19

utility model patents and has granted 3 invention patents. Kaflon is committed to the research and

development and production of ultra-low temperature, high pressure, corrosion resistance and other

harsh environmental seal products, breaking the monopoly position of foreign suppliers in many fields.

Our Advantages

* We implement a flexible quotation system

* We have ERP system traceable data and records

* We can customize products according to customers' drawings or samples.

* We have a technical team with decades of experience

* OEM available.

* We can produce quad rings and have complete molds

* Each of our service personnel is a professional sealing technical engineer.

* The raw materials we use are all international first-line brands.

* We offer sealing products in the most demanding sealing environments, in sync with international

monopoly products
