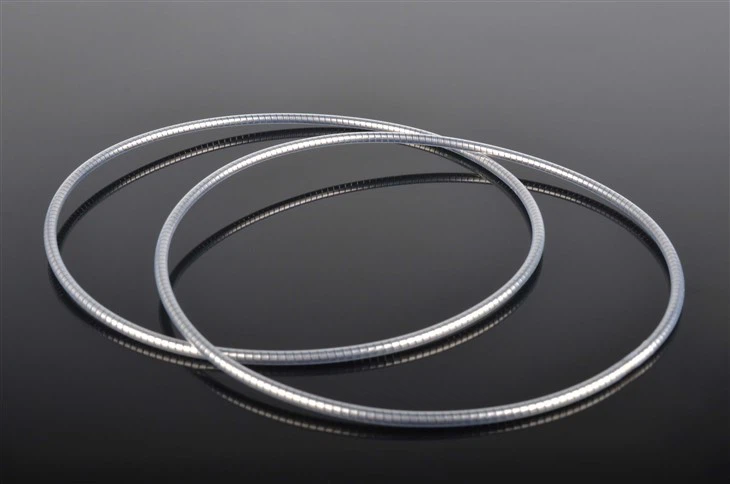

Low Temperature FEP Encapsulated O Ring

FEP encapsulated O-rings are versatile and reliable sealing solutions that combine the best properties of elastomers and polymers.

Send Inquiry

FEP encapsulated O-rings have a unique combination of properties that make them suitable for high-performance sealing applications. Some of the key properties of FEP encapsulated O-rings include:

1. Excellent chemical resistance: FEP encapsulated O-rings can resist a wide range of aggressive chemicals, including acids, alkalis, solvents, and hydrocarbons. The FEP outer layer acts as a barrier to prevent chemical attack on the elastomer core, ensuring long-lasting performance in harsh environments.

2. Low friction and stick-slip-free operation: The FEP outer layer has a very low coefficient of friction, which gives FEP encapsulated O-rings a smooth and easy-to-install surface that reduces wear and tear. The low friction also eliminates stick-slip problems, improving the sealing performance and extending the life of the O-ring.

3. High-temperature resistance: FEP encapsulated O-rings can withstand high temperatures up to 400°F (204°C) without losing their sealing properties. The elastomer core and FEP outer layer work together to provide excellent thermal stability and resistance to thermal cycling.

4. Good mechanical properties: FEP encapsulated O-rings have good compression set, tensile strength, and tear resistance, maintaining their sealing force even under high-pressure conditions.

Proper installation of FEP encapsulated O-rings is critical to ensure their sealing performance and longevity. Here are some guidelines for installing FEP encapsulated O-rings:

1. Make sure the installation area is clean and free of debris, oil, and other contaminants that can damage the O-ring.

2. Lubricate the O-ring with a compatible lubricant before installation to avoid twisting, tearing, or rolling.

3. Check the O-ring groove for any burrs, nicks, or damage that can affect the O-ring sealing.

4. Install the O-ring in the groove carefully, avoiding over-compression or under-compression that can affect the O-ring performance.

5. Perform a leak test to verify the sealing effectiveness of the O-ring.

seal 2
