Teflon Spring Seal
Product Overview

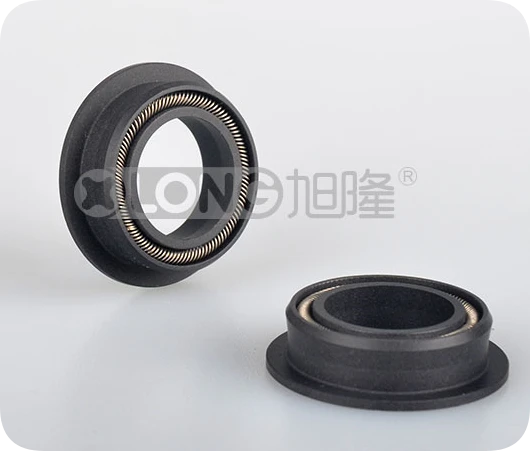

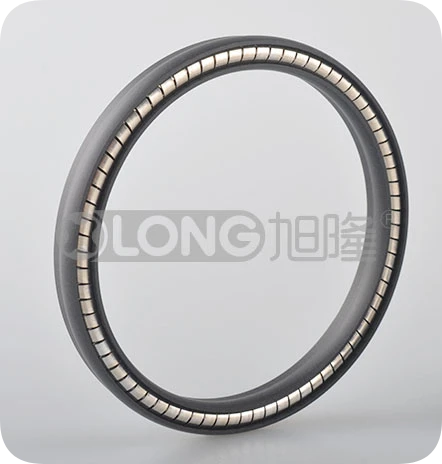

KAFLON® Teflon Spring Energized Seals are advanced sealing solutions designed for extreme operating conditions where conventional elastomer seals cannot perform reliably.
These seals consist of a PTFE (Teflon) jacket combined with a corrosion-resistant metal spring energizer, providing consistent sealing force even under low pressure, high temperature, vacuum, and chemically aggressive environments.
Key Features & Benefits
Extremely low friction coefficient
Excellent chemical resistance (almost all media)
Wide temperature range
Suitable for vacuum and cryogenic conditions
Stable sealing under low pressure conditions
No elastomer degradation issues
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature Range | -200°C to +260°C |
| Pressure | Up to 60 MPa (depending on design) |
| Speed | Suitable for dynamic applications |
| Chemical Resistance | Excellent |
| Sealing Type | Static & Dynamic |
Typical Applications
KAFLON® Teflon Spring Energized Seals are widely used in:
Semiconductor manufacturing equipment
Chemical processing systems
Oil & gas valves and pumps
Pharmaceutical and food processing equipment
Cryogenic and LNG systems
Aerospace and high-end hydraulic systems
These applications require seals capable of operating in extreme temperatures, aggressive chemicals, and high precision environments.
Material Options
Material selection can be optimized for corrosion resistance, temperature, and media compatibility.
-
PTFE Jacket Materials
Virgin PTFE
Filled PTFE (Carbon, Glass, Bronze)
Modified PTFE
-
PTFE Jacket Materials
Virgin PTFE
Filled PTFE (Carbon, Glass, Bronze)
Modified PTFE
Frequently Asked Questions
Lorem ipsum dolor sit amet,consectetur.
1. Proven Performance in Extreme Conditions
+
-
KAFLON® seals are designed to operate in environments where standard elastomer seals fail:
Temperature range from -200°C to +260°C
Excellent resistance to aggressive chemicals and solvents
Reliable sealing under vacuum and low-pressure conditions
2. Optimized Spring Design
+
-
KAFLON® provides multiple spring energizer options:
Cantilever spring (low friction applications)
Helical spring (high load capability)
Slant coil spring (balanced performance)
Each design ensures consistent sealing force and long-term elasticity, even in dynamic conditions.
3. Wide Range of Custom Solutions
+
-
We support fully customized sealing solutions, including:
Rod seals, piston seals, face seals
Non-standard groove designs
Special sizes and profiles
Application-specific engineering support
4. Low Friction & Long Service Life
+
-
Thanks to PTFE's inherent properties:
Reduced wear and energy consumption
Smooth operation in dynamic systems
Extended maintenance intervals
5. High Purity & Clean Applications Ready
+
-
KAFLON® seals are ideal for industries requiring contamination-free performance:
Semiconductor manufacturing
Pharmaceutical processing
Food & beverage systems
